Key Features
- High backrest with a padded, stitched headrest section
- Generously cushioned back and seat with contrast stitching
- Padded armrests on polished chrome supports
- Synchronised back-tilt mechanism that locks at any angle
- Pneumatic gas-lift seat-height adjustment with a recline tension knob
- Polished chrome five-star base on twin-wheel castors

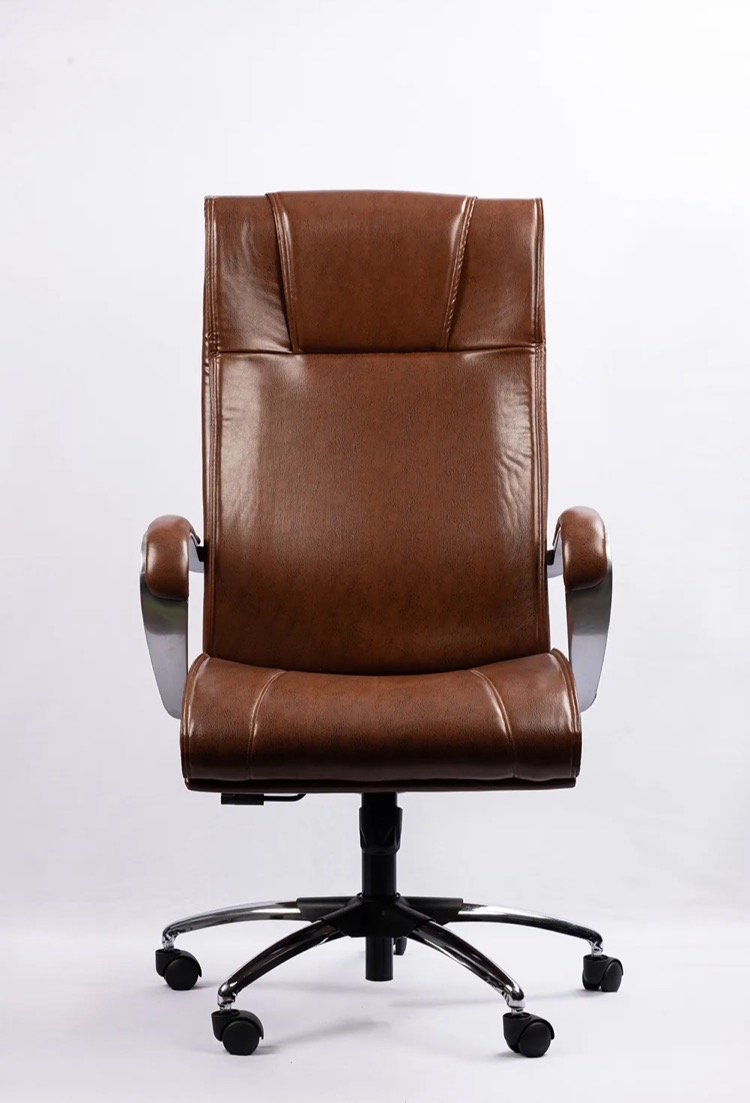

- Brown leatherette as shown, or 157 leatherette shades across the Leatherite and Phantom ranges
Advantages
- Deep cushioning gives plush, executive-level comfort
- Supports the back from the lower back up to the head
- Leatherette wipes clean easily and keeps a rich, polished look
- Padded arms give the forearms a soft resting point
- A classic executive presence for cabins, boardrooms and director offices
Break-Up of Chair
| Component | Specification |
|---|---|
|
Backrest |
High backrest over a pressed and moulded multi-layer veneer shell, generously cushioned and finished in leatherette, with a stitched headrest section |
|
Armrest |
Padded armrests finished to match the upholstery, on polished chrome supports |
|
Mechanism |
Synchronised back-tilt mechanism that locks at any angle; back-tilt or knee-tilt mechanisms available on request |
|
Seat |
Deeply cushioned seat over high-density PU moulded foam, finished in leatherette to match the back |
|
Gaslift |
Pneumatic height adjustment so the feet rest flat on the floor and the thighs stay free of pressure |
|
Tension knob |
Sets the recline tension to suit the sitter’s weight and build |
|
Base |
Polished chrome five-star base; nylon or brushed aluminium bases also available |
|
Caster |
Twin-wheel castors that roll smoothly on carpet |
Technical Data
| Element | Construction |
|---|---|
|
Chair back |
Upholstered in leatherette over multiple layers of veneer, pressed and moulded into shape. Foam support is hot-pressed plywood; the cushion is cold-cured self-skinned polyurethane foam |
|
Chair seat |
Foam support is hot-pressed plywood; the cushion is cold-cured self-skinned polyurethane foam |
Mechanism Options
| Option | Description |
|---|---|
|
Knee synchro tilt |
Pivot point at the front edge of the seat; back reclination lockable at all positions, with a cantilever effect and an anti-panic safety clutch. The best mechanism for longer sitting |
|
Knee tilt |
Pivot point at the centre of the seat, lockable at all positions |
|
Synchro tilt |
Pivot point at the centre of the seat, lockable at all positions, or optional one-position upfront locking |
|
Back tilt |
Pivot point at the centre of the seat, lockable at all positions, or optional one-position upfront locking |
|
Gas lift |
Seat-height adjustment with additional comfort even at the lowest position |
|
Armrest |
A choice of armrest types — adjustable arms, fixed PP topping or PU topping — depending on individual needs |
|
Base |
Pressure die-cast aluminium or nylon five-star base, with twin-wheel castors or pressure-activated castors for smooth movement |
Upholstery Leatherette — Technical Specifications
| Range | Composition | Weight | Width | Abrasion / flexing | Flammability | Shades on this chair |
|---|---|---|---|---|---|---|
|
Alex |
PVC |
600 g / linear metre ±5% |
137 cm / 54 in |
50,000 cycles Martindale (12 kPa); flexing 20,000 cycles |
BS EN 1021-1:1994 cigarette test: pass. BS EN 1021-2:1994 match test: pass |
9 (AX 01 – AX 09) |
|
Chicago |
PVC |
900 g / linear metre ±5% |
137 cm / 54 in |
90,000 cycles Martindale |
BS EN 1021-1:1994 cigarette test: pass. BS EN 1021-2:1994 match test: pass |
25 (CG 101 – CG 125) |
|
Eden |
PVC |
654 g / linear metre ±5% |
137 cm / 54 in |
— |
BS EN 1021-1:1994 cigarette test: pass. BS 7176:1995 low hazard: pass |
15 (ED 201 – ED 215) |
|
Fortune |
78% PVC, 2% PU and polyester |
1,000 g / linear metre ±5% |
137 cm / 54 in |
1,00,000 cycles (12 kPa); Wyzenbeek 1,50,000 double rubs (ASTM D4157) |
BS EN 1021-1:1994 cigarette test: pass. BS EN 1021-2:1994 match test: pass. CAL-117: pass |
30 (FR 101 – FR 130) |
|
Nawazo |
PVC |
650 g / linear metre ±5% |
137 cm / 54 in |
— |
— |
6 (NW 01 – NW 06) |
|
Orchid |
PVC |
650 g / linear metre ±5% |
137 cm / 54 in |
— |
BS EN 1021-1:1994 cigarette test: pass. BS 7176:1995 low hazard: pass |
11 (OD 401 – OD 411) |
|
Stylo |
PVC |
650 g / linear metre ±5% |
137 cm / 54 in |
— |
BS EN 1021-1:1994 cigarette test: pass. BS 7176:1995 low hazard: pass |
12 (SO 301 – SO 312) |
|
Supreme Leather |
PVC |
650 g / linear metre ±5% |
140 cm / 55 in |
80,000 cycles Martindale; flexing 80,000 cycles |
BS EN 1021-1:1994 cigarette test: pass. BS EN 1021-2:1994 match test: pass (fire retardant) |
7 (SL 501 – SL 506, SL 508) |
|
Phantom |
59% PVC, 35% polyester, 6% PU |
600 GSM |
137 cm / 54 in |
50,000 cycles Martindale |
FR standard FMVSS 302 approved |
42 (Phantom 101 – 142) |
| Property | Leatherite ranges | Phantom |
|---|---|---|
|
Passing BIS method |
IS 15768:2008 (RA-2018); IS 12467 Part 1:2006 and Part 2:2006 |
— |
|
Fastness to rubbing |
Dry 4–4.5, wet 4–5 (ISO X12:2016), depending on range |
— |
|
Fastness to light |
Above 5 (ISO 105-B02:2014) for Eden, Fortune and Nawazo |
4 |
|
Additional features |
— |
Phthalate-free, heavy-metal free and non-toxic, anti-bacterial, water resistant, flexible at low temperatures |
|
Flammability note |
Flammability performance depends on the combination of materials used |
— |
|
Maintenance |
Do not use abrasive cleaners |
Clean with a dry, soft, non-abrasive cloth; keep away from heaters; clean off body oils and perspiration regularly; avoid sharp objects |
|
Usage |
Upholstery, acoustic, auditorium seating, modular furniture |
Upholstery |
|
Colour matching |
Batch-to-batch shade variation may occur within commercial tolerances |
Colour may vary from batch to batch |
|
Shades on this chair |
115 across eight ranges |
42 |
