Key Features
- Generously sized, fully upholstered backrest with a softly rounded top
- Pressed and moulded multi-layer veneer back shell, finished in fabric at the rear
- Height-adjustable T-shaped armrests
- Synchronised back-tilt mechanism that locks at any angle
- Contoured seat in high-density PU moulded foam
- Pneumatic gas-lift seat-height adjustment with a recline tension knob

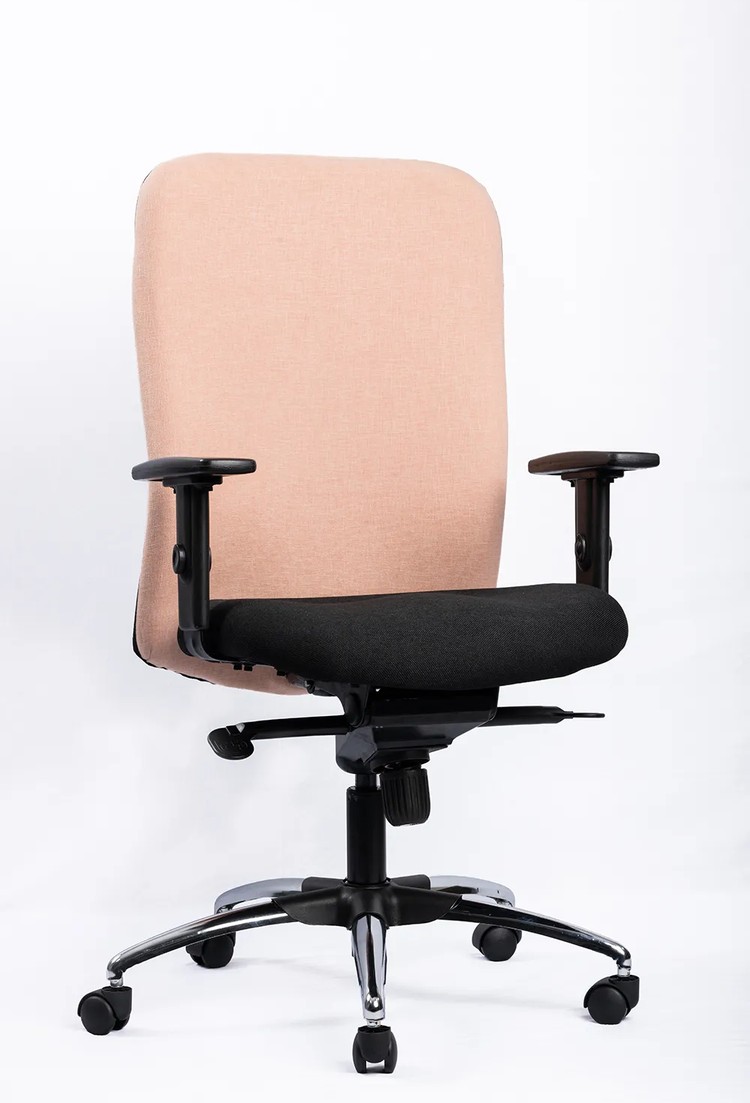

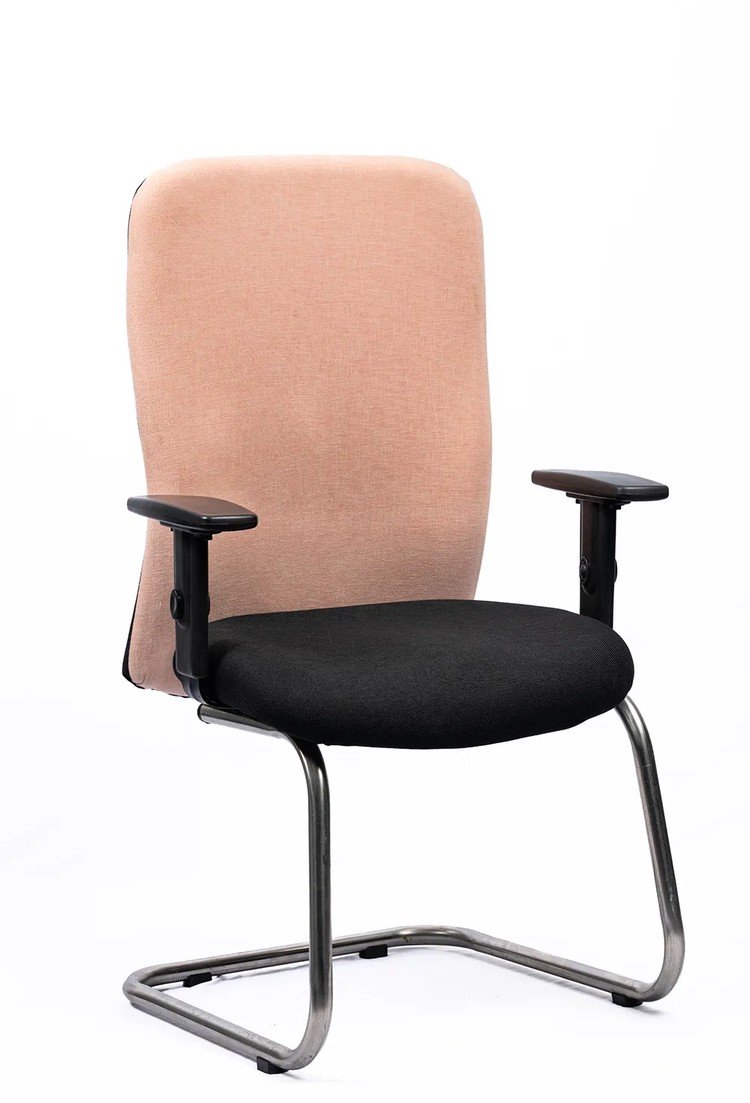

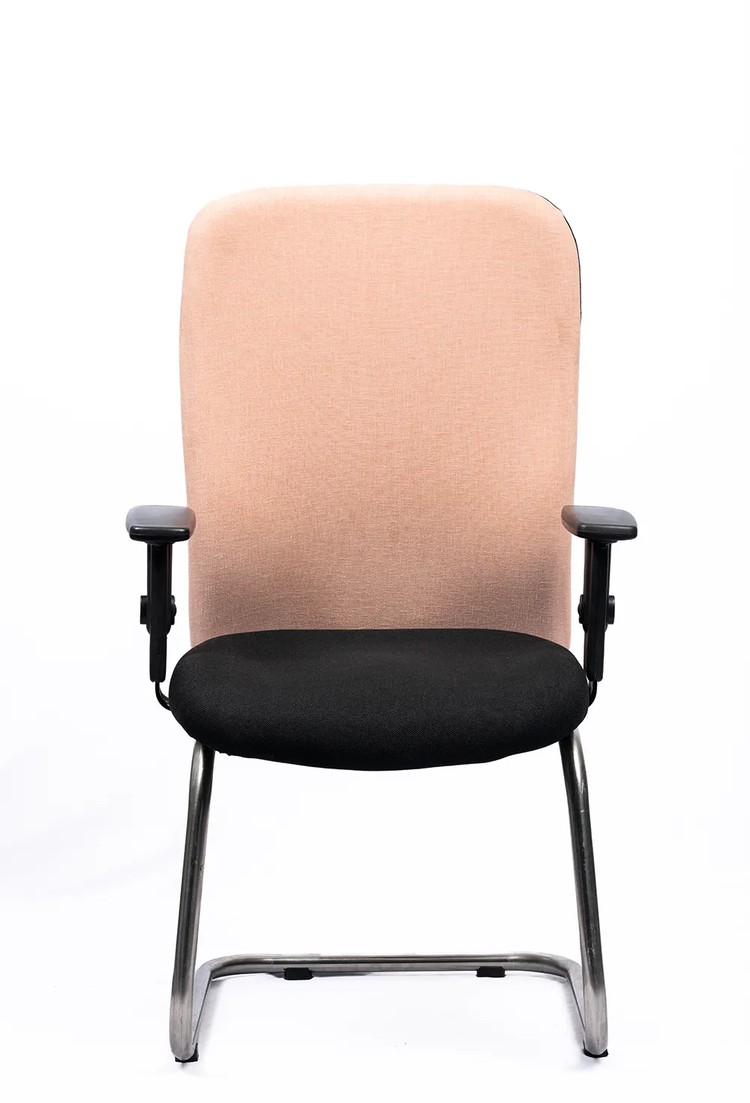

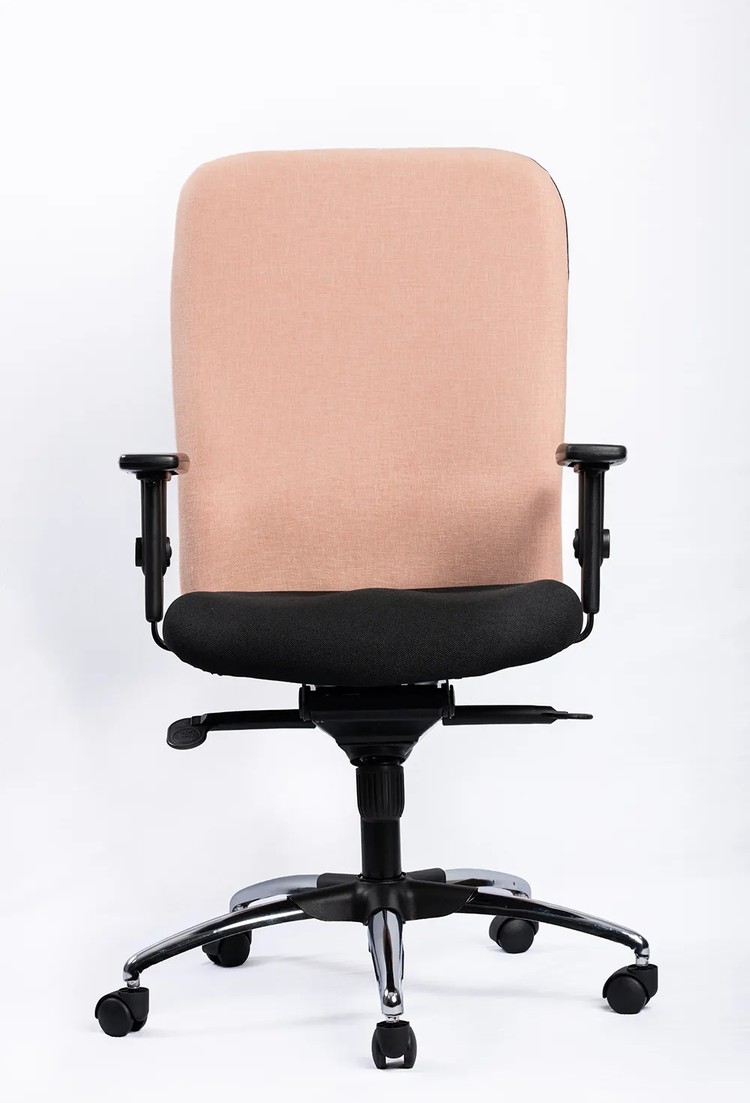

- Three versions: Chrome Base, Nylon Base, or Visitor Chair on a chrome cantilever sled frame
- 89 upholstery shades across the Dynamic and Festival ranges
Advantages
- Broad, continuous support for the lower and upper back
- Arm height adjusts to the desk, easing the shoulders and neck
- Feet rest flat on the floor, keeping pressure off the thighs
- Built for full working days at a desk
- A clean, understated look that suits open offices and cabins
Break-Up of Chair
| Component | Specification |
|---|---|
|
Backrest |
Fully upholstered in fabric over a pressed and moulded multi-layer veneer shell with a softly rounded top; foam cushioning supports the lumbar and upper back |
|
Armrest |
Height-adjustable T-shaped armrests on all three versions, so the arms rest at desk height and the shoulders stay relaxed |
|
Mechanism |
Synchronised back-tilt mechanism with any-angle locking on the Chrome Base and Nylon Base versions; back-tilt or knee-tilt mechanisms available as an option |
|
Seat |
Contoured seat, fully upholstered in fabric over high-density PU moulded foam |
|
Gaslift |
Pneumatic height adjustment on the Chrome Base and Nylon Base versions, letting the feet rest flat on the floor and avoiding pressure under the thighs |
|
Tension knob |
Adjusts the recline tension to suit the sitter’s weight and build |
|
Base |
Nylon Base: black nylon five-star base. Chrome Base: chrome five-star base. Visitor Chair: chrome cantilever sled frame |
|
Caster |
Hard twin-wheel castors on the five-star bases; the Visitor Chair stands on floor glides |
Technical Data
| Element | Construction |
|---|---|
|
Chair back |
Fully upholstered in fabric over multiple layers of veneer, pressed and moulded into shape. Foam support is hot-pressed plywood; the cushion is cold-cured self-skinned polyurethane foam |
|
Chair seat |
Foam support is hot-pressed plywood; the cushion is cold-cured self-skinned polyurethane foam |
Mechanism Options
| Option | Description |
|---|---|
|
Knee synchro tilt |
Pivot point at the front edge of the seat; back reclination lockable at all positions, with a cantilever effect and an anti-panic safety clutch. The best mechanism for longer sitting |
|
Knee tilt |
Pivot point at the centre of the seat, lockable at all positions |
|
Synchro tilt |
Pivot point at the centre of the seat, lockable at all positions, or optional one-position upfront locking |
|
Back tilt |
Pivot point at the centre of the seat, lockable at all positions, or optional one-position upfront locking |
|
Gas lift |
Seat-height adjustment with additional comfort even at the lowest position |
|
Armrest |
A choice of armrest types — adjustable arms, fixed PP topping or PU topping — depending on individual needs |
|
Base |
Pressure die-cast aluminium or nylon five-star base, with twin-wheel castors or pressure-activated castors for smooth movement |
Upholstery Fabric — Technical Specifications
| Property | Dynamic | Festival |
|---|---|---|
|
Composition |
50% polyester + 50% cotton |
100% polyester |
|
Weight |
451 g / linear metre ±5% |
375 g / linear metre ±5% |
|
Width |
137 cm / 54 inches ±2% |
137 cm / 54 inches ±2% |
|
Abrasion |
73,000 cycles (tested at 12 kPa) |
90,000 cycles (tested at 12 kPa) |
|
Flammability |
BS EN 1021-1:1994 cigarette test: pass. BS 7176:1995 low hazard: pass |
BS EN 1021-1:1994 cigarette test: pass. BS 7176:1995 low hazard: pass |
|
Fire retardant |
— |
Meets BS EN 1021-2:1994 match test and IS 15061-2002 when treated with the FR Extreme process |
|
Passing BIS method |
IS 15768:2008 (RA-2018); IS 12467 Part 1:2006 and Part 2:2006 |
IS 15768:2008 (RA-2018); IS 12467 Part 1:2006 and Part 2:2006 |
|
Fastness to light |
Above 5 (ISO 105-B02:2014) |
Above 5 (ISO 105-B02:2014) |
|
Fastness to rubbing |
Dry 4–5, wet 4–5 (ISO X12:2016) |
Dry 4.5, wet 4 (ISO X12:2016) |
|
Hydroguard |
Water and stain repellency treatment available on request |
Water and stain repellency treatment available on request |
|
Maintenance |
Professional cleaning recommended |
Professional cleaning recommended |
|
Usage |
Upholstery, acoustic, auditorium seating, modular furniture |
Upholstery, acoustic, auditorium seating, modular furniture |
|
Colour matching |
Batch-to-batch shade variation may occur within commercial tolerances |
Batch-to-batch shade variation may occur within commercial tolerances |
|
Shades on this chair |
33 (DM 01 – DM 33) |
56 (F 102 – F 5051) |
